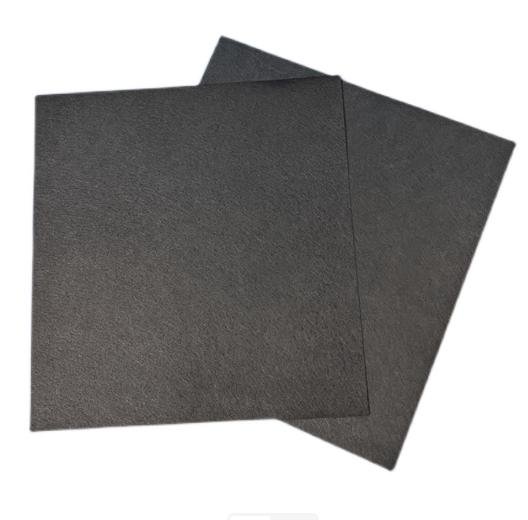

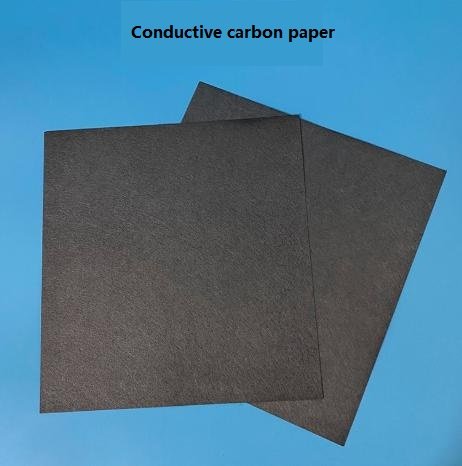

Conductive carbon paper for hydrophilic fuel cells
Conductive carbon paper for hydrophilic fuel cells HCP020P HCP030N.
| Model | HCP010N | HCP020N | HCP020P | HCP030N | HCP030P |
| Hydrophilic/Hydrophobic | Hydrophilic | Hydrophilic | Hydrophobic | Hydrophilic | Hydrophobic |
| Thickness | 0.1mm | 0.2mm | 0.2mm | 0.3mm | 0.3mm |
| Size | 21*20cm | 21*20cm | 21*20cm | 21*20cm | 21*20cm |
| Resistivity | ＜10mΩ.cm² | ＜11mΩ.cm² | ＜16mΩ.cm² | ＜12mΩ.cm² | ＜18mΩ.cm² |
| Porosity | 80% | 80% | 75% | 80% | 75% |
| Air resistance | ＜11mmH₂0 | ＜11mmH₂0 | ＜12mmH₂0 | ＜11mmH₂0 | ＜12mmH₂0 |
| Bending radius | ＞10cm | ＞10cm | ＞10cm | ＞10cm | ＞10cm |
| Model | HCP120 | HCP121 | HCP122 | HCP125 | HCP130 | HCP135 |
| hydrophilic/hydrophobic | Filling layer MPL | Filling layer MPL | Filling layer MPL | Composite filling layer MPL | Composite filling layer MPL | Composite filling layer (self-humidifying) MPL |
| Thickness | 0.22mm | 0.21mm | 0.23mm | 0.26mm | 0.29mm | 0.32mm |
| Size | 21*20cm | 21*20cm | 21*20cm | 21*20cm | 21*20cm | 21*20cm |
| Resistivity | ＜23mΩ.cm² | ＜14mΩ.cm² | ＜15mΩ.cm² | ＜31mΩ.cm² | ＜34mΩ.cm² | ＜35mΩ.cm |
| Air resistance | ＞20mmH₂0 | ＞20mmH₂0 | ＞20mmH₂0 | ＞20mmH₂0 | ＞20mmH₂0 | ＞20mmH₂0 |
| Bending radius | ＞10cm | ＞10cm | ＞10cm | ＞10cm | ＞10cm | ＞10cm |
