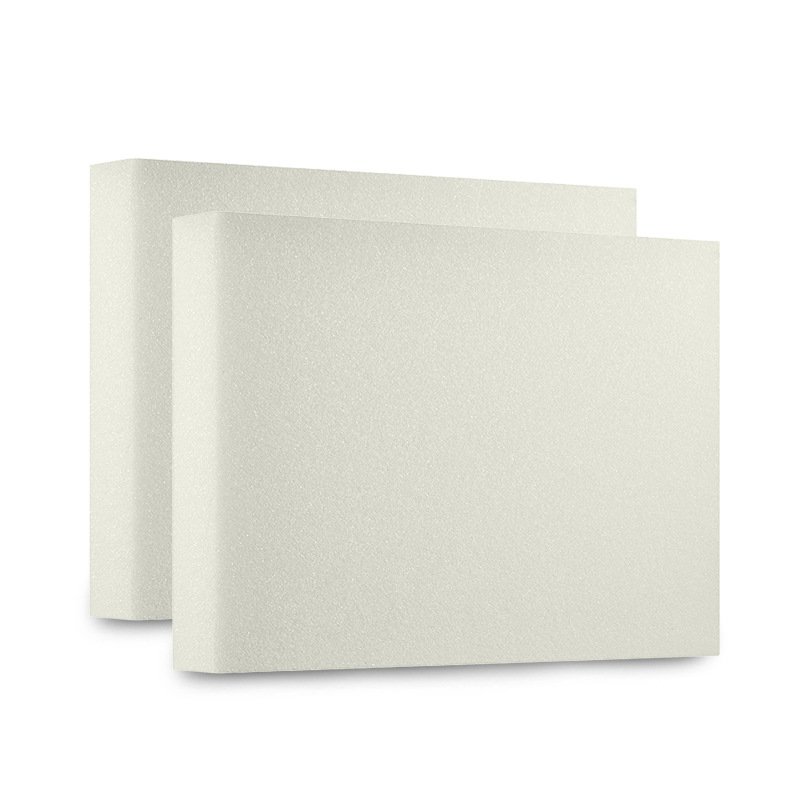

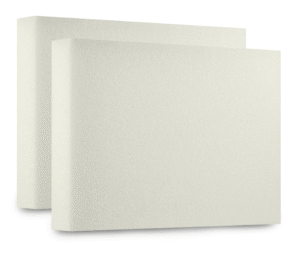

Evonik ROHACELL WF closed-cell PMI rigid foam board polymethacrylimide high-density engineering

Evonik ROHACELL WF Specifications:
Density: 300 kg/m³
Compressive Strength: 17.8 MPa
Tensile Strength: 12 MPa
Stretch Film Volume: 578 MPa
Elongation at Break: 2.8%
Shear Strength: 8.3 MPa
Shear Modulus: 364 MPa
Coefficient of Thermal Expansion: 3.5 1/K*10E-5

Product Benefits:
Ideally suited for autoclave curing and vacuum resin infusion processes, including RTM and VARTM.
When building composite structures, the lightweight ROHACELL WF’s closed-cell structure ensures that the resin remains where you want it—at the interface. This eliminates excess and unnecessary resin, which can add unnecessary weight to the finished product.
Can be easily thermoformed or CNC machined to meet customer specifications.
Highly precise preformed and ready-to-use foam cores are available for complex or simple geometries.

Applications:
Automotive
Aerospace
Antenna applications
Medical equipment
Speakers
Sports equipment

Package:1 Set
