QM002 type common electrolytic cell three-port electrolytic cell
The C002 ordinary electrolytic cell has the advantages of acid and alkali resistance and easy electrode disassembly and use.
Product Name: Standard Electrolytic Cell
Model: QM002
Volumes: 20ml, 30ml, 50ml, 100ml, 150ml, 200ml, 300ml, 500ml, 1000ml
Application: Two-electrode/three-electrode electrochemical experiments
Features: Acid and alkali resistant, easy-to-remove electrodes

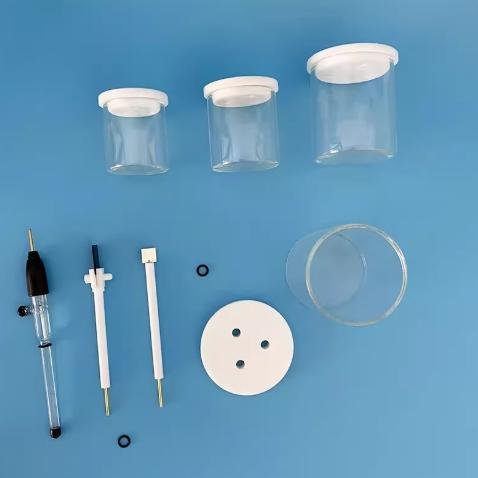

Includes:

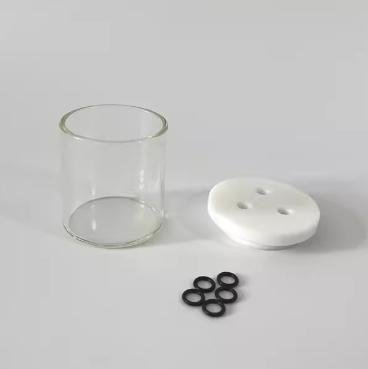

1 borosilicate glass body
1 PTFE lid
10 rubber seals
Note: Electrodes are not included; the electrodes in the image are for reference only.
The cell capacity is 5-20ml larger than the actual capacity.

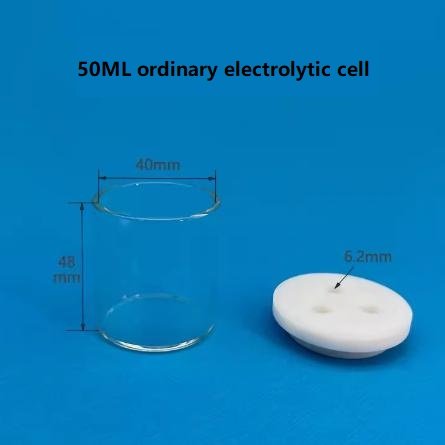

Three 6.2mm electrode holes are standard; custom holes are available. Salt bridges can be added.
Parameters:
|
Model |
Capacity |
Inner Diameter (mm) |
Outer Diameter (mm) |
Total Height (mm) |
Cup Thickness (mm) |
|
QM002
|
20ml |
30 |
35 |
36 |
2.5-3 |
|
25ml |
30 |
43 |
42 |
2.5-3 |
|
|
30ml |
35 |
40 |
42 |
2.5-3 |
|
|
50ml |
40 |
45 |
48 |
2.5-3 |
|
|
100ml |
50 |
55 |
60 |
2.5-3 |
|
|
150ml |
55 |
60 |
72 |
2.5-3 |
|
|
200ml |
60 |
65 |
80 |
2.5-3 |
|
|
250ml |
70 |
75 |
75 |
2.5-3 |
|
|
300ml |
70 |
75 |
90 |
2.5-3 |
|
|
500ml |
80 |
85 |
110 |
2.5-3 |
